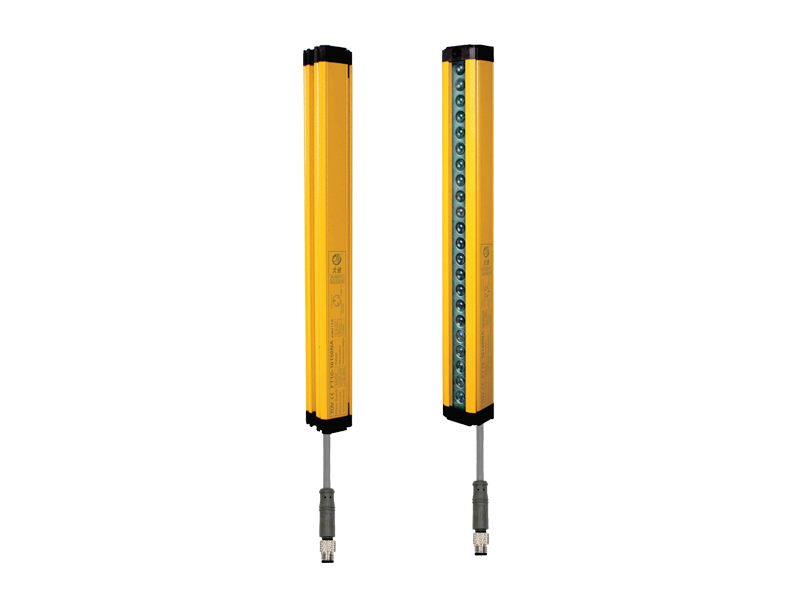

JCF光同步安全光幕

产品分类: 安全光幕

产品描述: 采用光同步技术
体积小巧,安装方便,超高性价比
能有效屏蔽99%干扰信号
极性、短路、过载保护、自检

联系我们

产品详情

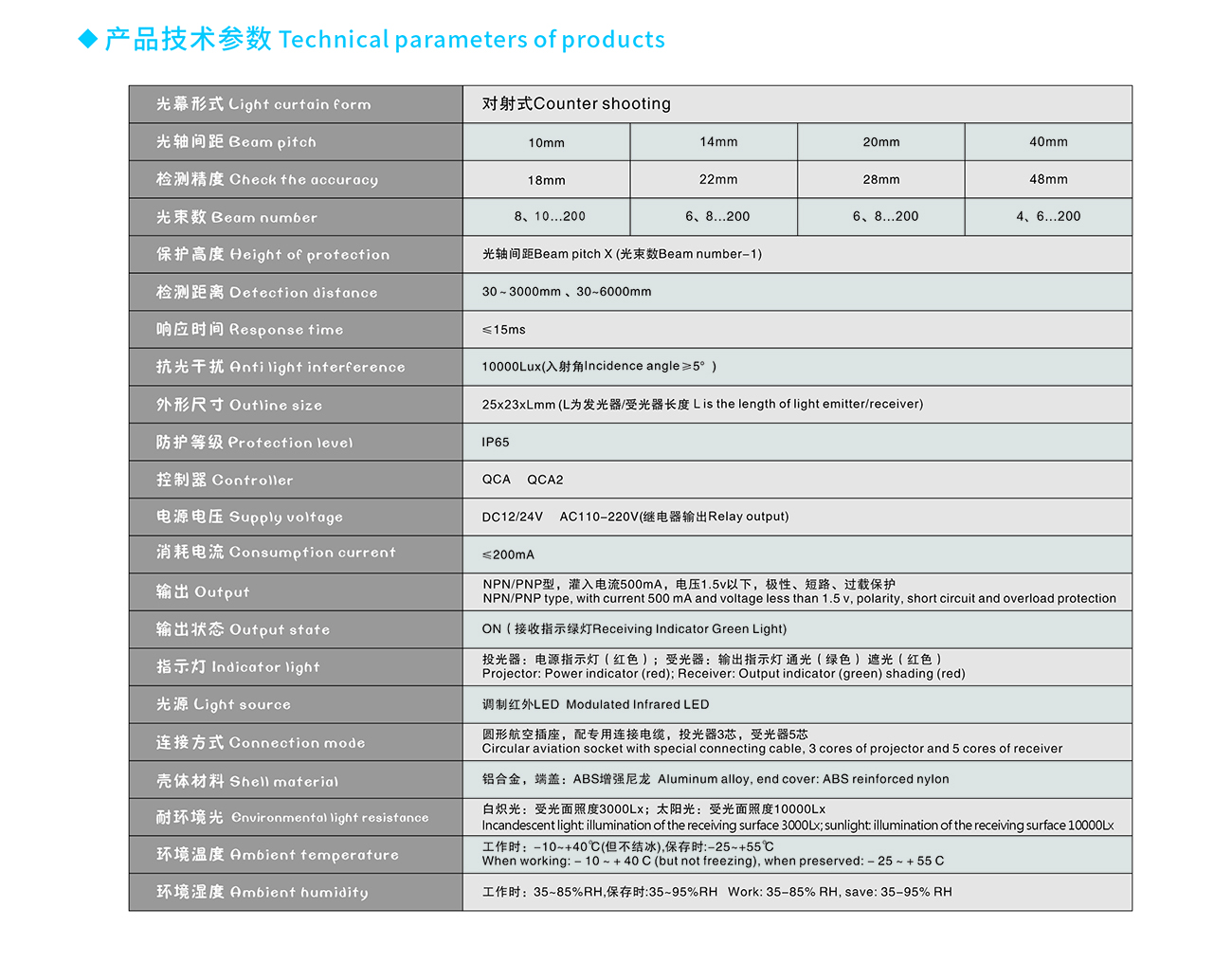

技术参数
选型表

（1、单击”光轴间距“选项卡选择你要的参数；2、直接联系客服选型；）

光轴间距距(2.5mm) 光轴间距(10mm) 光轴间距(20mm) 光轴间距(40mm)

JCF10-08 70NA	JCF	10	8	70	0.3-3m (6m)	N/P
JCF10-10 90NA	JCF	10mm	10	90	0.3-3m (6m)	N/P
JCF10-12 110NA	JCF	10mm	12	110	0.3-3m (6m)	N/P
JCF10-14 130NA	JCF	10mm	14	130	0.3-3m (6m)	N/P
JCF10-16 150NA	JCF	10mm	16	150	0.3-3m (6m)	N/P
JCF10-18 170NA	JCF	10mm	18	170	0.3-3m (6m)	N/P
JCF10-20 190NA	JCF	10mm	20	190	0.3-3m (6m)	N/P
JCF10-22 210NA	JCF	10mm	22	210	0.3-3m (6m)	N/P
JCF10-24 230NA	JCF	10mm	24	230	0.3-3m (6m)	N/P
JCF10-26 250NA	JCF	10mm	26	250	0.3-3m (6m)	N/P
JCF10-28 270NA	JCF	10mm	28	270	0.3-3m (6m)	N/P
JCF10-30 290NA	JCF	10mm	30	290	0.3-3m (6m)	N/P
JCF10-32 310NA	JCF	10mm	32	310	0.3-3m (6m)	N/P
JCF10-34 330NA	JCF	10mm	34	330	0.3-3m (6m)	N/P
JCF10-36 350NA	JCF	10mm	36	350	0.3-3m (6m)	N/P
JCF10-38 370NA	JCF	10mm	38	370	0.3-3m (6m)	N/P
JCF10-40 390NA	JCF	10mm	40	390	0.3-3m (6m)	N/P
JCF10-42 410NA	JCF	10mm	42	410	0.3-3m (6m)	N/P
JCF10-44 430NA	JCF	10mm	44	430	0.3-3m (6m)	N/P
JCF10-46 450NA	JCF	10mm	46	450	0.3-3m (6m)	N/P
JCF10-48 470NA	JCF	10mm	48	470	0.3-3m (6m)	N/P
JCF10-50 490NA	JCF	10mm	50	490	0.3-3m (6m)	N/P
JCF10-52 510NA	JCF	10mm	52	510	0.3-3m (6m)	N/P
JCF10-54 530NA	JCF	10mm	54	530	0.3-3m (6m)	N/P
JCF10-56 550NA	JCF	10mm	56	550	0.3-3m (6m)	N/P
JCF10-58 570NA	JCF	10mm	58	570	0.3-3m (6m)	N/P
JCF10-60 590NA	JCF	10mm	60	590	0.3-3m (6m)	N/P
JCF10-62 610NA	JCF	10mm	62	610	0.3-3m (6m)	N/P
JCF10-64 630NA	JCF	10mm	64	630	0.3-3m (6m)	N/P
JCF10-66 650NA	JCF	10mm	66	650	0.3-3m (6m)	N/P
JCF10-68 670NA	JCF	10mm	68	670	0.3-3m (6m)	N/P
JCF10-70 690NA	JCF	10mm	70	690	0.3-3m (6m)	N/P
JCF10-72 710NA	JCF	10mm	72	710	0.3-3m (6m)	N/P
JCF10-74 730NA	JCF	10mm	74	730	0.3-3m (6m)	N/P
JCF10-76 750NA	JCF	10mm	76	750	0.3-3m (6m)	N/P
JCF10-78 770NA	JCF	10mm	78	770	0.3-3m (6m)	N/P
JCF10-80 790NA	JCF	10mm	80	790	0.3-3m (6m)	N/P
JCF10-82 810NA	JCF	10mm	82	810	0.3-3m (6m)	N/P
JCF10-84 830NA	JCF	10mm	84	830	0.3-3m (6m)	N/P
JCF10-86 850NA	JCF	10mm	86	850	0.3-3m (6m)	N/P
JCF10-88 870NA	JCF	10mm	88	870	0.3-3m (6m)	N/P
JCF10-90 890NA	JCF	10mm	90	890	0.3-3m (6m)	N/P
JCF10-92 910NA	JCF	10mm	92	910	0.3-3m (6m)	N/P
JCF10-94 930NA	JCF	10mm	94	930	0.3-3m (6m)	N/P
JCF10-96 950NA	JCF	10mm	96	950	0.3-3m (6m)	N/P
JCF10-98 970NA	JCF	10mm	98	970	0.3-3m (6m)	N/P
JCF10-100 990NA	JCF	10mm	100	990	0.3-3m (6m)	N/P
JCF10-102 1010NA	JCF	10mm	102	1010	0.3-3m (6m)	N/P
JCF10-104 1030NA	JCF	10mm	104	1030	0.3-3m (6m)	N/P
JCF10-106 1050NA	JCF	10mm	106	1050	0.3-3m (6m)	N/P
JCF10-108 1070NA	JCF	10mm	108	1070	0.3-3m (6m)	N/P
JCF10-110 1090NA	JCF	10mm	110	1090	0.3-3m (6m)	N/P
JCF10-112 1110NA	JCF	10mm	112	1110	0.3-3m (6m)	N/P
JCF10-114 1130NA	JCF	10mm	114	1130	0.3-3m (6m)	N/P
JCF10-116 1150NA	JCF	10mm	116	1150	0.3-3m (6m)	N/P
JCF10-118 1170NA	JCF	10mm	118	1170	0.3-3m (6m)	N/P
JCF10-120 1190NA	JCF	10mm	120	1190	0.3-3m (6m)	N/P
JCF10-122 1210NA	JCF	10mm	122	1210	0.3-3m (6m)	N/P
JCF10-124 1230NA	JCF	10mm	124	1230	0.3-3m (6m)	N/P
JCF10-126 1250NA	JCF	10mm	126	1250	0.3-3m (6m)	N/P
JCF10-128 1270NA	JCF	10mm	128	1270	0.3-3m (6m)	N/P
JCF10-130 1290NA	JCF	10mm	130	1290	0.3-3m (6m)	N/P
JCF10-132 1310NA	JCF	10mm	132	1310	0.3-3m (6m)	N/P
JCF10-134 1330NA	JCF	10mm	134	1330	0.3-3m (6m)	N/P
JCF10-136 1350NA	JCF	10mm	136	1350	0.3-3m (6m)	N/P
JCF10-138 1370NA	JCF	10mm	138	1370	0.3-3m (6m)	N/P
JCF10-140 1390NA	JCF	10mm	140	1390	0.3-3m (6m)	N/P
JCF10-142 1410NA	JCF	10mm	142	1410	0.3-3m (6m)	N/P
JCF10-144 1430NA	JCF	10mm	144	1430	0.3-3m (6m)	N/P
JCF10-146 1450NA	JCF	10mm	146	1450	0.3-3m (6m)	N/P
JCF10-148 1470NA	JCF	10mm	148	1470	0.3-3m (6m)	N/P
JCF10-150 1490NA	JCF	10mm	150	1490	0.3-3m (6m)	N/P
JCF10-152 1510NA	JCF	10mm	152	1510	0.3-3m (6m)	N/P
JCF10-154 1530NA	JCF	10mm	154	1530	0.3-3m (6m)	N/P
JCF10-156 1550NA	JCF	10mm	156	1550	0.3-3m (6m)	N/P
JCF10-158 1570NA	JCF	10mm	158	1570	0.3-3m (6m)	N/P
JCF10-160 1590NA	JCF	10mm	160	1590	0.3-3m (6m)	N/P
JCF10-162 1610NA	JCF	10mm	162	1610	0.3-3m (6m)	N/P
JCF10-164 1630NA	JCF	10mm	164	1630	0.3-3m (6m)	N/P
JCF10-166 1650NA	JCF	10mm	166	1650	0.3-3m (6m)	N/P
JCF10-168 1670NA	JCF	10mm	168	1670	0.3-3m (6m)	N/P
JCF10-170 1690NA	JCF	10mm	170	1690	0.3-3m (6m)	N/P
JCF10-172 1710NA	JCF	10mm	172	1710	0.3-3m (6m)	N/P
JCF10-174 1730NA	JCF	10mm	174	1730	0.3-3m (6m)	N/P
JCF10-176 1750NA	JCF	10mm	176	1750	0.3-3m (6m)	N/P
JCF10-178 1770NA	JCF	10mm	178	1770	0.3-3m (6m)	N/P
JCF10-180 1790NA	JCF	10mm	180	1790	0.3-3m (6m)	N/P
JCF10-182 1810NA	JCF	10mm	182	1810	0.3-3m (6m)	N/P
JCF10-184 1830NA	JCF	10mm	184	1830	0.3-3m (6m)	N/P
JCF10-186 1850NA	JCF	10mm	186	1850	0.3-3m (6m)	N/P
JCF10-188 1870NA	JCF	10mm	188	1870	0.3-3m (6m)	N/P
JCF10-190 1890NA	JCF	10mm	190	1890	0.3-3m (6m)	N/P
JCF10-192 1910NA	JCF	10mm	192	1910	0.3-3m (6m)	N/P
JCF10-194 1930NA	JCF	10mm	194	1930	0.3-3m (6m)	N/P
JCF10-196 1950NA	JCF	10mm	196	1950	0.3-3m (6m)	N/P
JCF10-198 1970NA	JCF	10mm	198	1970	0.3-3m (6m)	N/P
JCF10-200 1990NA	JCF	10mm	200	1990	0.3-3m (6m)	N/P

JCF14-06 70NA	JCF	14mm	6	70	0.3-3m (6m)	N/P
JCF14-08 98NA	JCF	14mm	8	98	0.3-3m (6m)	N/P
JCF14-10 126NA	JCF	14mm	10	126	0.3-3m (6m)	N/P
JCF14-12 154NA	JCF	14mm	12	154	0.3-3m (6m)	N/P
JCF14-14 182NA	JCF	14mm	14	182	0.3-3m (6m)	N/P
JCF14-16 210NA	JCF	14mm	16	210	0.3-3m (6m)	N/P
JCF14-18 238NA	JCF	14mm	18	238	0.3-3m (6m)	N/P
JCF14-20 266NA	JCF	14mm	20	266	0.3-3m (6m)	N/P
JCF14-22 294NA	JCF	14mm	22	294	0.3-3m (6m)	N/P
JCF14-24 322NA	JCF	14mm	24	322	0.3-3m (6m)	N/P
JCF14-26 350NA	JCF	14mm	26	350	0.3-3m (6m)	N/P
JCF14-28 378NA	JCF	14mm	28	378	0.3-3m (6m)	N/P
JCF14-30 406NA	JCF	14mm	30	406	0.3-3m (6m)	N/P
JCF14-32 434NA	JCF	14mm	32	434	0.3-3m (6m)	N/P
JCF14-34 462NA	JCF	14mm	34	462	0.3-3m (6m)	N/P
JCF14-36 490NA	JCF	14mm	36	490	0.3-3m (6m)	N/P
JCF14-38 518NA	JCF	14mm	38	518	0.3-3m (6m)	N/P
JCF14-40 546NA	JCF	14mm	40	546	0.3-3m (6m)	N/P
JCF14-42 574NA	JCF	14mm	42	574	0.3-3m (6m)	N/P
JCF14-44 602NA	JCF	14mm	44	602	0.3-3m (6m)	N/P
JCF14-46 630NA	JCF	14mm	46	630	0.3-3m (6m)	N/P
JCF14-48 658NA	JCF	14mm	48	658	0.3-3m (6m)	N/P
JCF14-50 686NA	JCF	14mm	50	686	0.3-3m (6m)	N/P
JCF14-52 714NA	JCF	14mm	52	714	0.3-3m (6m)	N/P
JCF14-54 742NA	JCF	14mm	54	742	0.3-3m (6m)	N/P
JCF14-56 770NA	JCF	14mm	56	770	0.3-3m (6m)	N/P
JCF14-58 798NA	JCF	14mm	58	798	0.3-3m (6m)	N/P
JCF14-60 826NA	JCF	14mm	60	826	0.3-3m (6m)	N/P
JCF14-62 854NA	JCF	14mm	62	854	0.3-3m (6m)	N/P
JCF14-64 882NA	JCF	14mm	64	882	0.3-3m (6m)	N/P
JCF14-66 910NA	JCF	14mm	66	910	0.3-3m (6m)	N/P
JCF14-68 938NA	JCF	14mm	68	938	0.3-3m (6m)	N/P
JCF14-70 966NA	JCF	14mm	70	966	0.3-3m (6m)	N/P
JCF14-72 994NA	JCF	14mm	72	994	0.3-3m (6m)	N/P
JCF14-74 1022NA	JCF	14mm	74	1022	0.3-3m (6m)	N/P
JCF14-76 1050NA	JCF	14mm	76	1050	0.3-3m (6m)	N/P
JCF14-78 1078NA	JCF	14mm	78	1078	0.3-3m (6m)	N/P
JCF14-80 1106NA	JCF	14mm	80	1106	0.3-3m (6m)	N/P
JCF14-82 1134NA	JCF	14mm	82	1134	0.3-3m (6m)	N/P
JCF14-84 1162NA	JCF	14mm	84	1162	0.3-3m (6m)	N/P
JCF14-86 1190NA	JCF	14mm	86	1190	0.3-3m (6m)	N/P
JCF14-88 1218NA	JCF	14mm	88	1218	0.3-3m (6m)	N/P
JCF14-90 1246NA	JCF	14mm	90	1246	0.3-3m (6m)	N/P
JCF14-92 1274NA	JCF	14mm	92	1274	0.3-3m (6m)	N/P
JCF14-94 1302NA	JCF	14mm	94	1302	0.3-3m (6m)	N/P
JCF14-96 1330NA	JCF	14mm	96	1330	0.3-3m (6m)	N/P
JCF14-98 1358NA	JCF	14mm	98	1358	0.3-3m (6m)	N/P
JCF14-100 1386NA	JCF	14mm	100	1386	0.3-3m (6m)	N/P
JCF14-102 1414NA	JCF	14mm	102	1414	0.3-3m (6m)	N/P
JCF14-104 1442NA	JCF	14mm	104	1442	0.3-3m (6m)	N/P
JCF14-106 1470NA	JCF	14mm	106	1470	0.3-3m (6m)	N/P
JCF14-108 1498NA	JCF	14mm	108	1498	0.3-3m (6m)	N/P
JCF14-110 1526NA	JCF	14mm	110	1526	0.3-3m (6m)	N/P
JCF14-112 1554NA	JCF	14mm	112	1554	0.3-3m (6m)	N/P
JCF14-114 1582NA	JCF	14mm	114	1582	0.3-3m (6m)	N/P
JCF14-116 1610NA	JCF	14mm	116	1610	0.3-3m (6m)	N/P
JCF14-118 1638NA	JCF	14mm	118	1638	0.3-3m (6m)	N/P
JCF14-120 1666NA	JCF	14mm	120	1666	0.3-3m (6m)	N/P
JCF14-122 1694NA	JCF	14mm	122	1694	0.3-3m (6m)	N/P
JCF14-124 1722NA	JCF	14mm	124	1722	0.3-3m (6m)	N/P
JCF14-126 1750NA	JCF	14mm	126	1750	0.3-3m (6m)	N/P
JCF14-128 1778NA	JCF	14mm	128	1778	0.3-3m (6m)	N/P
JCF14-130 1806NA	JCF	14mm	130	1806	0.3-3m (6m)	N/P
JCF14-132 1834NA	JCF	14mm	132	1834	0.3-3m (6m)	N/P
JCF14-134 1862NA	JCF	14mm	134	1862	0.3-3m (6m)	N/P
JCF14-136 1890NA	JCF	14mm	136	1890	0.3-3m (6m)	N/P
JCF14-138 1918NA	JCF	14mm	138	1918	0.3-3m (6m)	N/P
JCF14-140 1946NA	JCF	14mm	140	1946	0.3-3m (6m)	N/P
JCF14-142 1974NA	JCF	14mm	142	1974	0.3-3m (6m)	N/P
JCF14-144 2002NA	JCF	14mm	144	2002	0.3-3m (6m)	N/P
JCF14-146 2030NA	JCF	14mm	146	2030	0.3-3m (6m)	N/P
JCF14-148 2058NA	JCF	14mm	148	2058	0.3-3m (6m)	N/P
JCF14-150 2086NA	JCF	14mm	150	2086	0.3-3m (6m)	N/P
JCF14-152 2114NA	JCF	14mm	152	2114	0.3-3m (6m)	N/P
JCF14-154 2142NA	JCF	14mm	154	2142	0.3-3m (6m)	N/P
JCF14-156 2170NA	JCF	14mm	156	2170	0.3-3m (6m)	N/P
JCF14-158 2198NA	JCF	14mm	158	2198	0.3-3m (6m)	N/P
JCF14-160 2226NA	JCF	14mm	160	2226	0.3-3m (6m)	N/P
JCF14-162 2254NA	JCF	14mm	162	2254	0.3-3m (6m)	N/P
JCF14-164 2282NA	JCF	14mm	164	2282	0.3-3m (6m)	N/P
JCF14-166 2310NA	JCF	14mm	166	2310	0.3-3m (6m)	N/P
JCF14-168 2338NA	JCF	14mm	168	2338	0.3-3m (6m)	N/P
JCF14-170 2366NA	JCF	14mm	170	2366	0.3-3m (6m)	N/P
JCF14-172 2394NA	JCF	14mm	172	2394	0.3-3m (6m)	N/P
JCF14-174 2422NA	JCF	14mm	174	2422	0.3-3m (6m)	N/P
JCF14-176 2450NA	JCF	14mm	176	2450	0.3-3m (6m)	N/P
JCF14-178 2478NA	JCF	14mm	178	2478	0.3-3m (6m)	N/P
JCF14-180 2506NA	JCF	14mm	180	2506	0.3-3m (6m)	N/P
JCF14-182 2534NA	JCF	14mm	182	2534	0.3-3m (6m)	N/P
JCF14-184 2562NA	JCF	14mm	184	2562	0.3-3m (6m)	N/P
JCF14-186 2590NA	JCF	14mm	186	2590	0.3-3m (6m)	N/P
JCF14-188 2618NA	JCF	14mm	188	2618	0.3-3m (6m)	N/P
JCF14-190 2646NA	JCF	14mm	190	2646	0.3-3m (6m)	N/P
JCF14-192 2674NA	JCF	14mm	192	2674	0.3-3m (6m)	N/P
JCF14-194 2702NA	JCF	14mm	194	2702	0.3-3m (6m)	N/P
JCF14-196 2730NA	JCF	14mm	196	2730	0.3-3m (6m)	N/P
JCF14-198 2758NA	JCF	14mm	198	2758	0.3-3m (6m)	N/P
JCF14-200 2786NA	JCF	14mm	200	2786	0.3-3m (6m)	N/P

JCF20-06 100NA	JCF	20mm	6	100	0.3-3m (6m)	N/P
JCF20-08 140NA	JCF	20mm	8	140	0.3-3m (6m)	N/P
JCF20-10 180NA	JCF	20mm	10	180	0.3-3m (6m)	N/P
JCF20-12 220NA	JCF	20mm	12	220	0.3-3m (6m)	N/P
JCF20-14 260NA	JCF	20mm	14	260	0.3-3m (6m)	N/P
JCF20-16 300NA	JCF	20mm	16	300	0.3-3m (6m)	N/P
JCF20-18 340NA	JCF	20mm	18	340	0.3-3m (6m)	N/P
JCF20-20 380NA	JCF	20mm	20	380	0.3-3m (6m)	N/P
JCF20-22 420NA	JCF	20mm	22	420	0.3-3m (6m)	N/P
JCF20-24 460NA	JCF	20mm	24	460	0.3-3m (6m)	N/P
JCF20-26 500NA	JCF	20mm	26	500	0.3-3m (6m)	N/P
JCF20-28 540NA	JCF	20mm	28	540	0.3-3m (6m)	N/P
JCF20-30 580NA	JCF	20mm	30	580	0.3-3m (6m)	N/P
JCF20-32 620NA	JCF	20mm	32	620	0.3-3m (6m)	N/P
JCF20-34 660NA	JCF	20mm	34	660	0.3-3m (6m)	N/P
JCF20-36 700NA	JCF	20mm	36	700	0.3-3m (6m)	N/P
JCF20-38 740NA	JCF	20mm	38	740	0.3-3m (6m)	N/P
JCF20-40 780NA	JCF	20mm	40	780	0.3-3m (6m)	N/P
JCF20-42 820NA	JCF	20mm	42	820	0.3-3m (6m)	N/P
JCF20-44 860NA	JCF	20mm	44	860	0.3-3m (6m)	N/P
JCF20-46 900NA	JCF	20mm	46	900	0.3-3m (6m)	N/P
JCF20-48 940NA	JCF	20mm	48	940	0.3-3m (6m)	N/P
JCF20-50 980NA	JCF	20mm	50	980	0.3-3m (6m)	N/P
JCF20-52 1020NA	JCF	20mm	52	1020	0.3-3m (6m)	N/P
JCF20-54 1060NA	JCF	20mm	54	1060	0.3-3m (6m)	N/P
JCF20-56 1100NA	JCF	20mm	56	1100	0.3-3m (6m)	N/P
JCF20-58 1140NA	JCF	20mm	58	1140	0.3-3m (6m)	N/P
JCF20-60 1180NA	JCF	20mm	60	1180	0.3-3m (6m)	N/P
JCF20-62 1220NA	JCF	20mm	62	1220	0.3-3m (6m)	N/P
JCF20-64 1260NA	JCF	20mm	64	1260	0.3-3m (6m)	N/P
JCF20-66 1300NA	JCF	20mm	66	1300	0.3-3m (6m)	N/P
JCF20-68 1340NA	JCF	20mm	68	1340	0.3-3m (6m)	N/P
JCF20-70 1380NA	JCF	20mm	70	1380	0.3-3m (6m)	N/P
JCF20-72 1420NA	JCF	20mm	72	1420	0.3-3m (6m)	N/P
JCF20-74 1460NA	JCF	20mm	74	1460	0.3-3m (6m)	N/P
JCF20-76 1500NA	JCF	20mm	76	1500	0.3-3m (6m)	N/P
JCF20-78 1540NA	JCF	20mm	78	1540	0.3-3m (6m)	N/P
JCF20-80 1580NA	JCF	20mm	80	1580	0.3-3m (6m)	N/P
JCF20-82 1620NA	JCF	20mm	82	1620	0.3-3m (6m)	N/P
JCF20-84 1660NA	JCF	20mm	84	1660	0.3-3m (6m)	N/P
JCF20-86 1700NA	JCF	20mm	86	1700	0.3-3m (6m)	N/P
JCF20-88 1740NA	JCF	20mm	88	1740	0.3-3m (6m)	N/P
JCF20-90 1780NA	JCF	20mm	90	1780	0.3-3m (6m)	N/P
JCF20-92 1820NA	JCF	20mm	92	1820	0.3-3m (6m)	N/P
JCF20-94 1860NA	JCF	20mm	94	1860	0.3-3m (6m)	N/P
JCF20-96 1900NA	JCF	20mm	96	1900	0.3-3m (6m)	N/P
JCF20-98 1940NA	JCF	20mm	98	1940	0.3-3m (6m)	N/P
JCF20-100 1980NA	JCF	20mm	100	1980	0.3-3m (6m)	N/P
JCF20-102 2020NA	JCF	20mm	102	2020	0.3-3m (6m)	N/P
JCF20-104 2060NA	JCF	20mm	104	2060	0.3-3m (6m)	N/P
JCF20-106 2100NA	JCF	20mm	106	2100	0.3-3m (6m)	N/P
JCF20-108 2140NA	JCF	20mm	108	2140	0.3-3m (6m)	N/P
JCF20-110 2180NA	JCF	20mm	110	2180	0.3-3m (6m)	N/P
JCF20-112 2220NA	JCF	20mm	112	2220	0.3-3m (6m)	N/P
JCF20-114 2260NA	JCF	20mm	114	2260	0.3-3m (6m)	N/P
JCF20-116 2300NA	JCF	20mm	116	2300	0.3-3m (6m)	N/P
JCF20-118 2340NA	JCF	20mm	118	2340	0.3-3m (6m)	N/P
JCF20-120 2380NA	JCF	20mm	120	2380	0.3-3m (6m)	N/P
JCF20-122 2420NA	JCF	20mm	122	2420	0.3-3m (6m)	N/P
JCF20-124 2460NA	JCF	20mm	124	2460	0.3-3m (6m)	N/P
JCF20-126 2500NA	JCF	20mm	126	2500	0.3-3m (6m)	N/P
JCF20-128 2540NA	JCF	20mm	128	2540	0.3-3m (6m)	N/P
JCF20-130 2580NA	JCF	20mm	130	2580	0.3-3m (6m)	N/P
JCF20-132 2620NA	JCF	20mm	132	2620	0.3-3m (6m)	N/P
JCF20-134 2660NA	JCF	20mm	134	2660	0.3-3m (6m)	N/P
JCF20-136 2700NA	JCF	20mm	136	2700	0.3-3m (6m)	N/P
JCF20-138 2740NA	JCF	20mm	138	2740	0.3-3m (6m)	N/P
JCF20-140 2780NA	JCF	20mm	140	2780	0.3-3m (6m)	N/P
JCF20-142 2820NA	JCF	20mm	142	2820	0.3-3m (6m)	N/P
JCF20-144 2860NA	JCF	20mm	144	2860	0.3-3m (6m)	N/P
JCF20-146 2900NA	JCF	20mm	146	2900	0.3-3m (6m)	N/P
JCF20-148 2940NA	JCF	20mm	148	2940	0.3-3m (6m)	N/P
JCF20-150 2980NA	JCF	20mm	150	2980	0.3-3m (6m)	N/P
JCF20-152 3020NA	JCF	20mm	152	3020	0.3-3m (6m)	N/P
JCF20-154 3060NA	JCF	20mm	154	3060	0.3-3m (6m)	N/P
JCF20-156 3100NA	JCF	20mm	156	3100	0.3-3m (6m)	N/P
JCF20-158 3140NA	JCF	20mm	158	3140	0.3-3m (6m)	N/P
JCF20-160 3180NA	JCF	20mm	160	3180	0.3-3m (6m)	N/P
JCF20-162 3220NA	JCF	20mm	162	3220	0.3-3m (6m)	N/P
JCF20-164 3260NA	JCF	20mm	164	3260	0.3-3m (6m)	N/P
JCF20-166 3300NA	JCF	20mm	166	3300	0.3-3m (6m)	N/P
JCF20-168 3340NA	JCF	20mm	168	3340	0.3-3m (6m)	N/P
JCF20-170 3380NA	JCF	20mm	170	3380	0.3-3m (6m)	N/P
JCF20-172 3420NA	JCF	20mm	172	3420	0.3-3m (6m)	N/P
JCF20-174 3460NA	JCF	20mm	174	3460	0.3-3m (6m)	N/P
JCF20-176 3500NA	JCF	20mm	176	3500	0.3-3m (6m)	N/P
JCF20-178 3540NA	JCF	20mm	178	3540	0.3-3m (6m)	N/P
JCF20-180 3580NA	JCF	20mm	180	3580	0.3-3m (6m)	N/P
JCF20-182 3620NA	JCF	20mm	182	3620	0.3-3m (6m)	N/P
JCF20-184 3660NA	JCF	20mm	184	3660	0.3-3m (6m)	N/P
JCF20-186 3700NA	JCF	20mm	186	3700	0.3-3m (6m)	N/P
JCF20-188 3740NA	JCF	20mm	188	3740	0.3-3m (6m)	N/P
JCF20-190 3780NA	JCF	20mm	190	3780	0.3-3m (6m)	N/P
JCF20-192 3820NA	JCF	20mm	192	3820	0.3-3m (6m)	N/P
JCF20-194 3860NA	JCF	20mm	194	3860	0.3-3m (6m)	N/P
JCF20-196 3900NA	JCF	20mm	196	3900	0.3-3m (6m)	N/P
JCF20-198 3940NA	JCF	20mm	198	3940	0.3-3m (6m)	N/P
JCF20-200 3980NA	JCF	20mm	200	3980	0.3-3m (6m)	N/P

JCF40-04 120NA	JCF	40mm	4	120	0.3-3m (6m)	N/P
JCF40-06 200NA	JCF	40mm	6	200	0.3-3m (6m)	N/P
JCF40-08 280NA	JCF	40mm	8	280	0.3-3m (6m)	N/P
JCF40-10 360NA	JCF	40mm	10	360	0.3-3m (6m)	N/P
JCF40-12 440NA	JCF	40mm	12	440	0.3-3m (6m)	N/P
JCF40-14 520NA	JCF	40mm	14	520	0.3-3m (6m)	N/P
JCF40-16 600NA	JCF	40mm	16	600	0.3-3m (6m)	N/P
JCF40-18 680NA	JCF	40mm	18	680	0.3-3m (6m)	N/P
JCF40-20 760NA	JCF	40mm	20	760	0.3-3m (6m)	N/P
JCF40-22 840NA	JCF	40mm	22	840	0.3-3m (6m)	N/P
JCF40-24 920NA	JCF	40mm	24	920	0.3-3m (6m)	N/P
JCF40-26 100NA	JCF	40mm	26	1000	0.3-3m (6m)	N/P
JCF40-28 100NA	JCF	40mm	28	1080	0.3-3m (6m)	N/P
JCF40-30 110NA	JCF	40mm	30	1160	0.3-3m (6m)	N/P
JCF40-32 120NA	JCF	40mm	32	1240	0.3-3m (6m)	N/P
JCF40-34 130NA	JCF	40mm	34	1320	0.3-3m (6m)	N/P
JCF40-36 140NA	JCF	40mm	36	1400	0.3-3m (6m)	N/P
JCF40-38 140NA	JCF	40mm	38	1480	0.3-3m (6m)	N/P
JCF40-40 150NA	JCF	40mm	40	1560	0.3-3m (6m)	N/P
JCF40-42 160NA	JCF	40mm	42	1640	0.3-3m (6m)	N/P
JCF40-44 170NA	JCF	40mm	44	1720	0.3-3m (6m)	N/P
JCF40-46 180NA	JCF	40mm	46	1800	0.3-3m (6m)	N/P
JCF40-48 180NA	JCF	40mm	48	1880	0.3-3m (6m)	N/P
JCF40-50 190NA	JCF	40mm	50	1960	0.3-3m (6m)	N/P
JCF40-52 200NA	JCF	40mm	52	2040	0.3-3m (6m)	N/P
JCF40-54 210NA	JCF	40mm	54	2120	0.3-3m (6m)	N/P
JCF40-56 220NA	JCF	40mm	56	2200	0.3-3m (6m)	N/P
JCF40-58 220NA	JCF	40mm	58	2280	0.3-3m (6m)	N/P
JCF40-60 230NA	JCF	40mm	60	2360	0.3-3m (6m)	N/P
JCF40-62 240NA	JCF	40mm	62	2440	0.3-3m (6m)	N/P
JCF40-64 250NA	JCF	40mm	64	2520	0.3-3m (6m)	N/P
JCF40-66 260NA	JCF	40mm	66	2600	0.3-3m (6m)	N/P
JCF40-68 260NA	JCF	40mm	68	2680	0.3-3m (6m)	N/P
JCF40-70 270NA	JCF	40mm	70	2760	0.3-3m (6m)	N/P
JCF40-72 280NA	JCF	40mm	72	2840	0.3-3m (6m)	N/P
JCF40-74 290NA	JCF	40mm	74	2920	0.3-3m (6m)	N/P
JCF40-76 300NA	JCF	40mm	76	3000	0.3-3m (6m)	N/P
JCF40-78 300NA	JCF	40mm	78	3080	0.3-3m (6m)	N/P
JCF40-80 310NA	JCF	40mm	80	3160	0.3-3m (6m)	N/P
JCF40-82 320NA	JCF	40mm	82	3240	0.3-3m (6m)	N/P
JCF40-84 330NA	JCF	40mm	84	3320	0.3-3m (6m)	N/P
JCF40-86 340NA	JCF	40mm	86	3400	0.3-3m (6m)	N/P
JCF40-88 340NA	JCF	40mm	88	3480	0.3-3m (6m)	N/P
JCF40-90 350NA	JCF	40mm	90	3560	0.3-3m (6m)	N/P
JCF40-92 360NA	JCF	40mm	92	3640	0.3-3m (6m)	N/P
JCF40-94 370NA	JCF	40mm	94	3720	0.3-3m (6m)	N/P
JCF40-96 380NA	JCF	40mm	96	3800	0.3-3m (6m)	N/P
JCF40-98 380NA	JCF	40mm	98	3880	0.3-3m (6m)	N/P
JCF40-100 390NA	JCF	40mm	100	3960	0.3-3m (6m)	N/P
